S&S Cycle 475 Cam Kit For Harley Milwaukee Eight 2017-2023

S&S 475C/G Camshaft Kit For Harley Milwaukee Eight

S&S has been in the business of making Harley-Davidson motorcycles go fast for a very long time, and their innovation in the world of cams is not exactly a secret. If you’re looking for more power from your bike, a cam is a wonderful place to start – especially if you’ve already done most of the easy ‘bolt-on’ modifications. Installing an S&S cam is a surefire way to make your mill suit your riding style while getting maximum output and reliability.

Features:

• 475 series camshaft offers bolt in 100 horsepower when paired with intake and exhaust
• Excellent for 107″ and 114″ engines

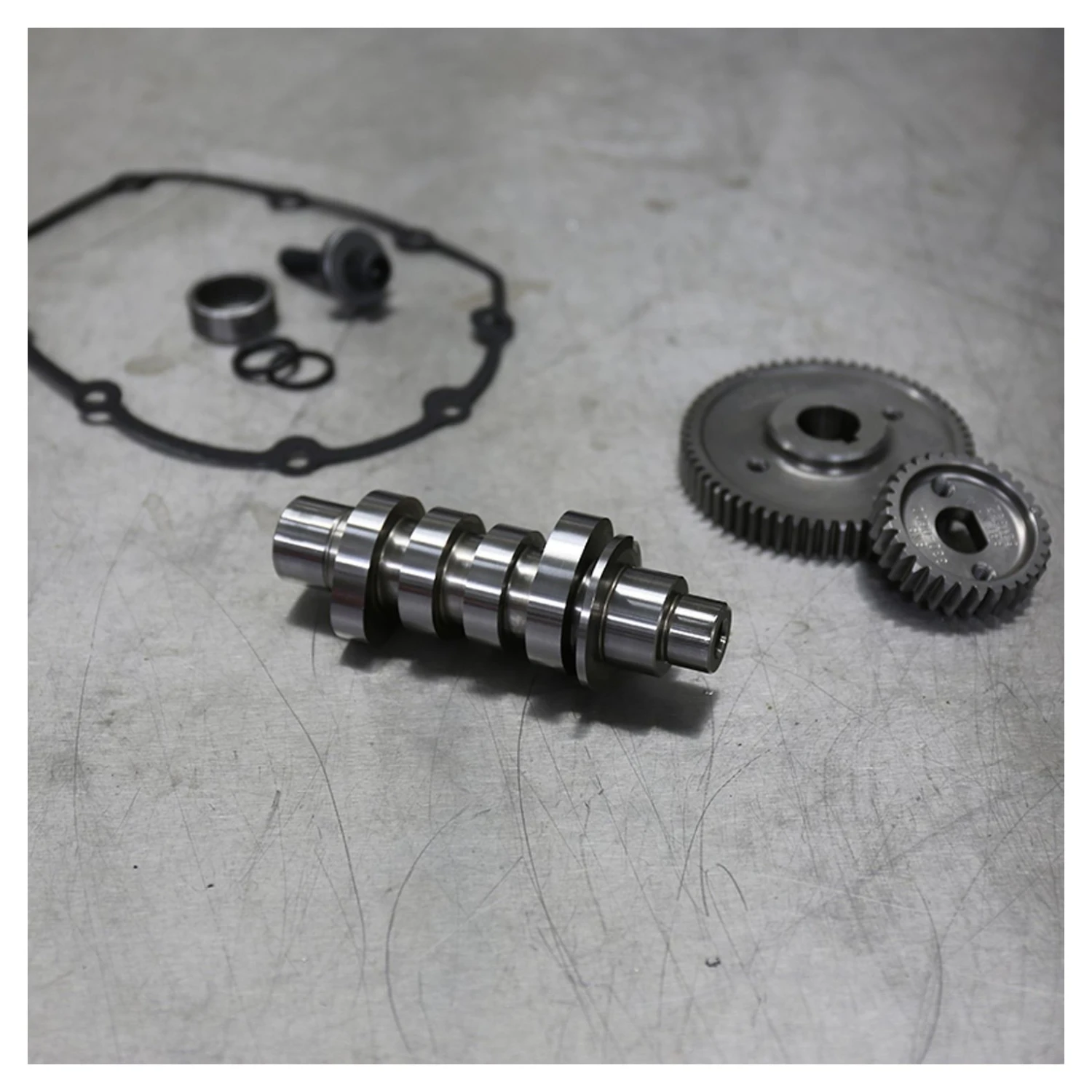

• Gear drive cams provide improved valve timing accuracy

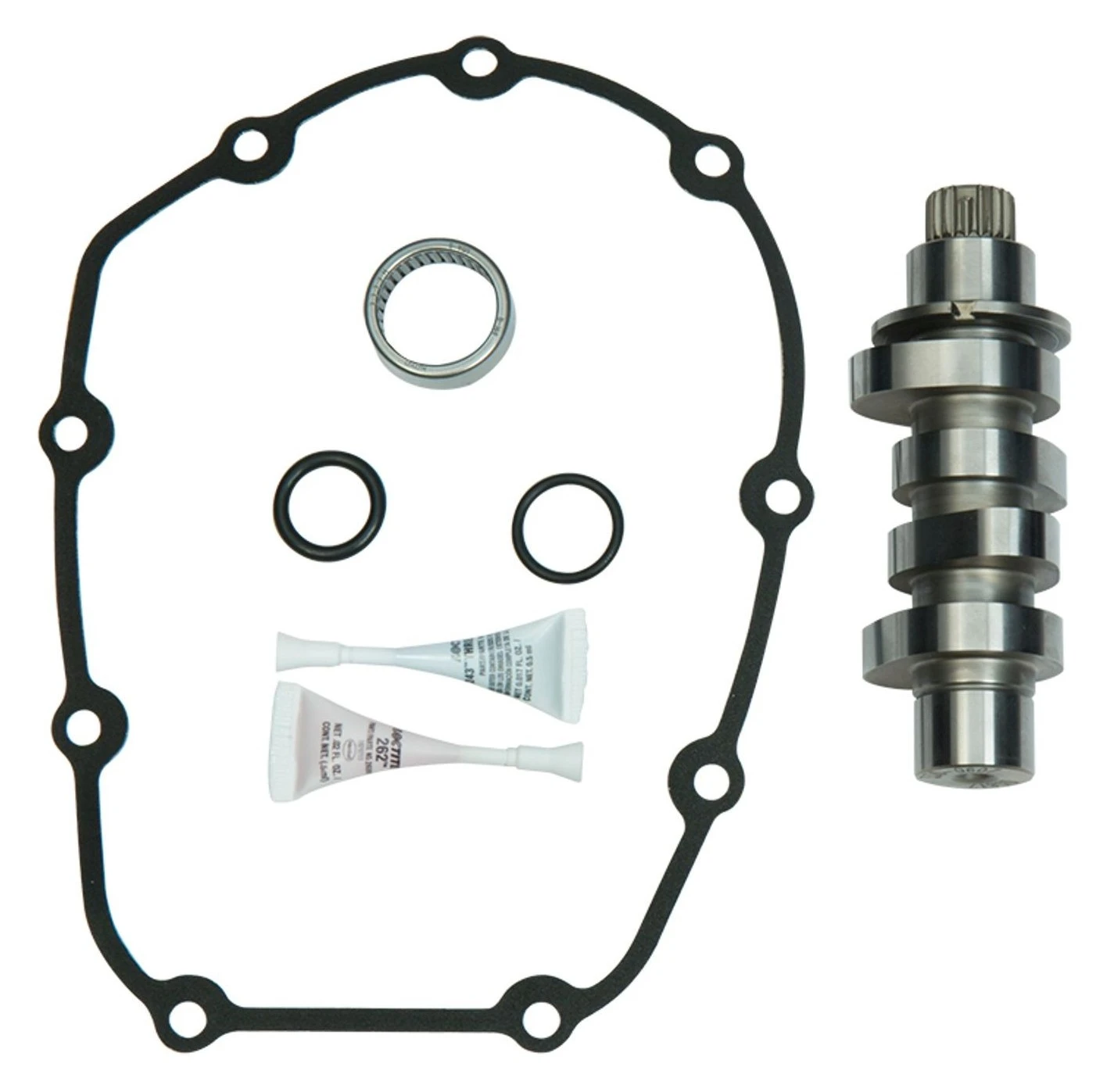

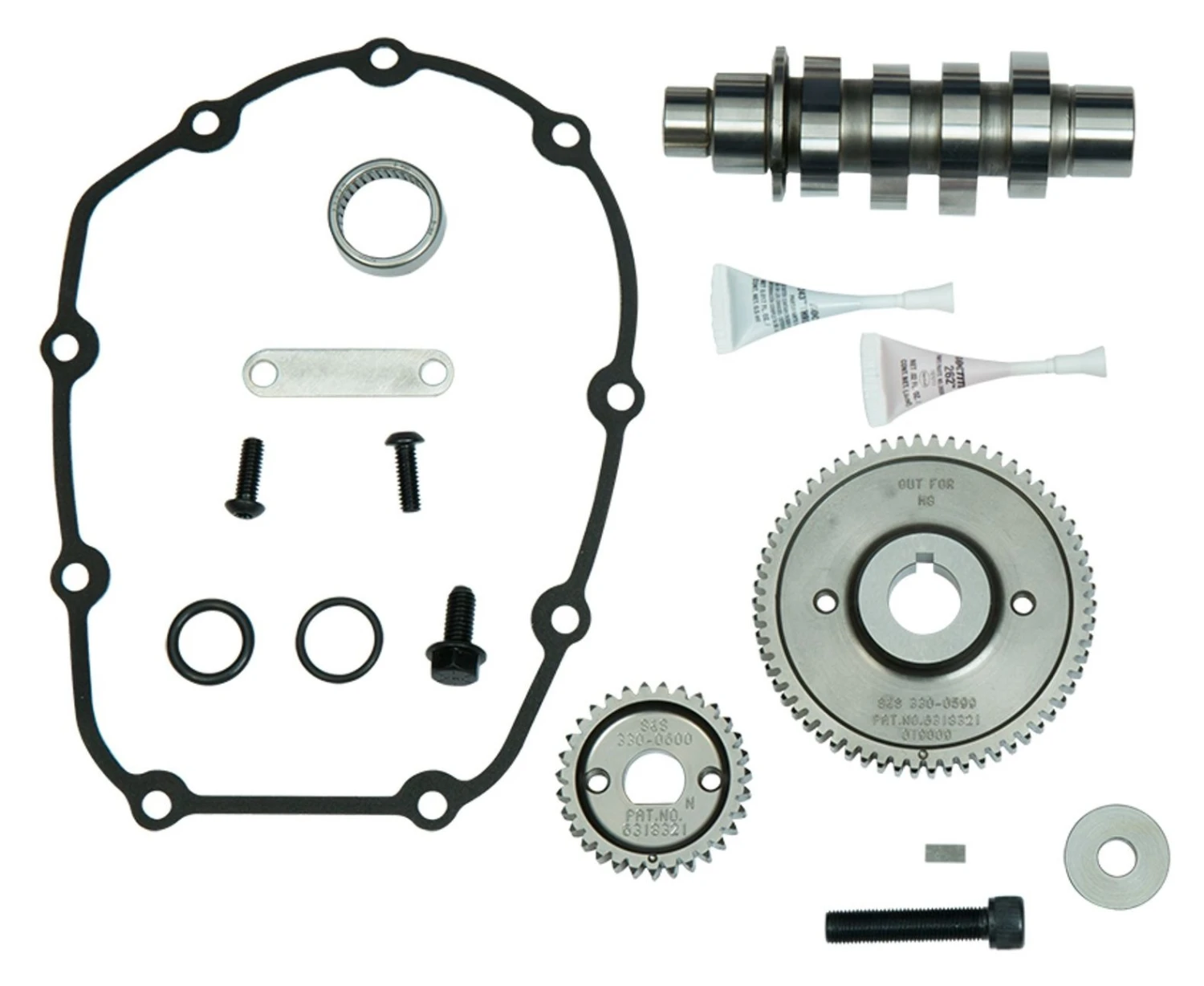

• Kits include all required bearings, o-rings and hardware
• Bolt-in! Compatible with all stock valve train components
• Made in the USA

475 Cam Info:

• Front Intake open/close 6.2°/27.2°
• Front Exhaust open/close 55.2°/28.5°
• Rear Intake open/close 2.2°/31.2°
• Rear Exhaust open/close 52.2°/20.2°

• Front Intake duration 213.5°
• Rear Intake duration 213.5°
• Front Exhaust duration 263.9°
• Rear Exhaust duration 252.5°
• Intake Lift .475″
• Exhaust Lift .475″

• Front Intake Lobe Center Line 100.5°
• Front Exhaust Lobe Center Line 103.5°
• Rear Intake Lobe Center Line 104.5°
• Rear Exhaust Lobe Center Line 106.0°

• Front Intake Lift at TDC .107″
• Front Exhaust Lift at TDC .208″
• Rear Intake Lift at TDC .093″
• Rear Exhaust Lift at TDC .170″

• Front Overlap 34.7°
• Rear Overlap 22.4°
